TWG

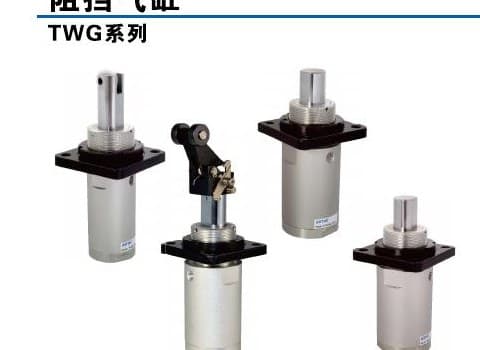

AirTAC TWG Stopper Cylinders
TWG is a stopper-cylinder family for conveyor and fixture work. Confirm double- or single-acting configuration, bore, stroke, stopper-rod form, magnetic option, self-lock option and...
Request type
AirTAC originalModel matchingChina-source alternative
About TWG
TWG is the height-adjustable double-acting stopper configuration; TTG is the published single-acting version. Select the actuation first, then match the bore, stroke, stopper-rod form and self-lock requirement.
Product information
Product image, drawing, and key data
Drawing and dimensions
- Confirm TWG double-acting or TTG single-acting stopper configuration
- Compare bore, stroke, stopper-rod form, magnetic option, self-lock option, mounting height and installed clearance
Key product data

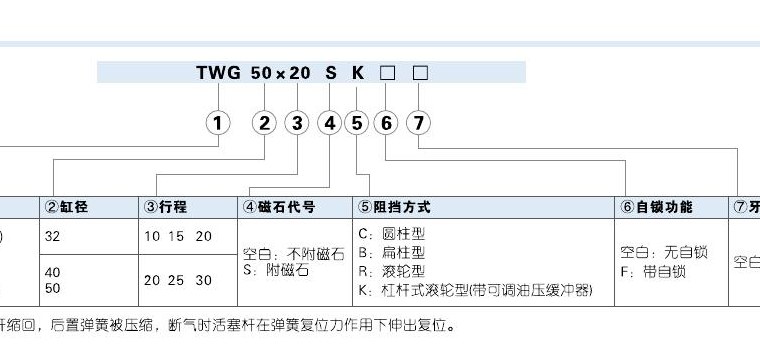

Model patterns
- TWG
- TTG
- TWG50X20SK
- TWG-50X20-S-K-F
Reference details
- Product type: Height-adjustable stopper cylinder family
- Published bores: 32, 40, 50 mm
- Published operating pressure: TWG 0.15–1.0 MPa; TTG 0.2–1.0 MPa
- Reference pages: PDF pages 1–2
Matching Questions
How does TTG differ from TWG?
TWG is the published double-acting height-adjustable configuration, while TTG is the single-acting version. Confirm the required return behavior and...
