AirTAC DPS Digital Pressure Sensors

DPS is a digital pressure-sensor family with two NPN or PNP switching outputs. Confirm output type, range, connection, port and cable before RFQ.

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

DPS digital pressure sensor product reference — Series product image

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

DPS [N1/P1] [terminal/lead/M8] - [01/10] [020/030/050] [port]Published DPS code layout

DPS N1 □-01 020 □DPS P1 M08-10 050 G

①Output	②Connection / range	③Lead / port
N1: NPN two-switch output; P1: PNP two-switch output.	Blank terminal, B lead or D M8; 01 −100 to 100 kPa, 10 −100 to 1,000 kPa.	020/030/050 identify 2/3/5 m lead; match PT1/8, G1/8 or M5 internal port code.

About DPS

DPS is a digital pressure-sensor family with two NPN or PNP switching outputs. Unlike DPH, the supplied DPS code structure does not specify an analogue output. Its 01/10 range, terminal/lead/M8 connection, cable length and port are match-critical code fields.

Product information

Product image, drawing, and key data

Product image

Complete DPS code or clear label and connector photos
N1 NPN or P1 PNP two-switch-output form
01 −100 to 100 kPa or 10 −100 to 1,000 kPa range
Terminal, lead or M8 connection; required lead length
PT1/8, G1/8 or M5 internal port arrangement

Drawing and dimensions

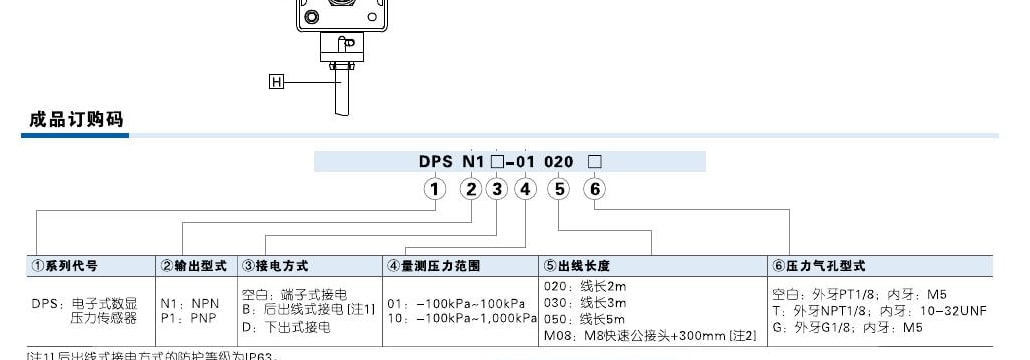

DPS pressure sensor ordering code reference

Open drawing

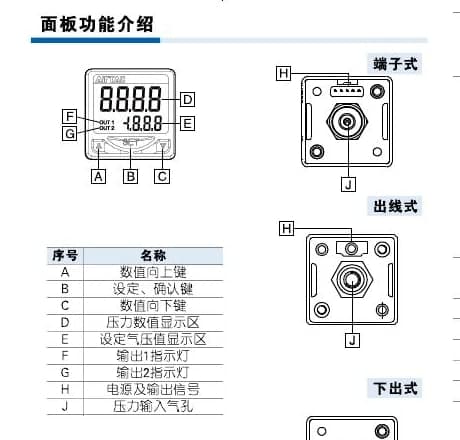

DPS pressure sensor connection reference

Open drawing

Confirm DPS NPN or PNP two-switch-output model rather than analogue-output DPH
Match 01/10 range, terminal/lead/M8 connection, cable length, port and installed orientation

Key product data

Model patterns

DPSN1-01
DPSP1-01
DPSN1-10
DPSP1-10

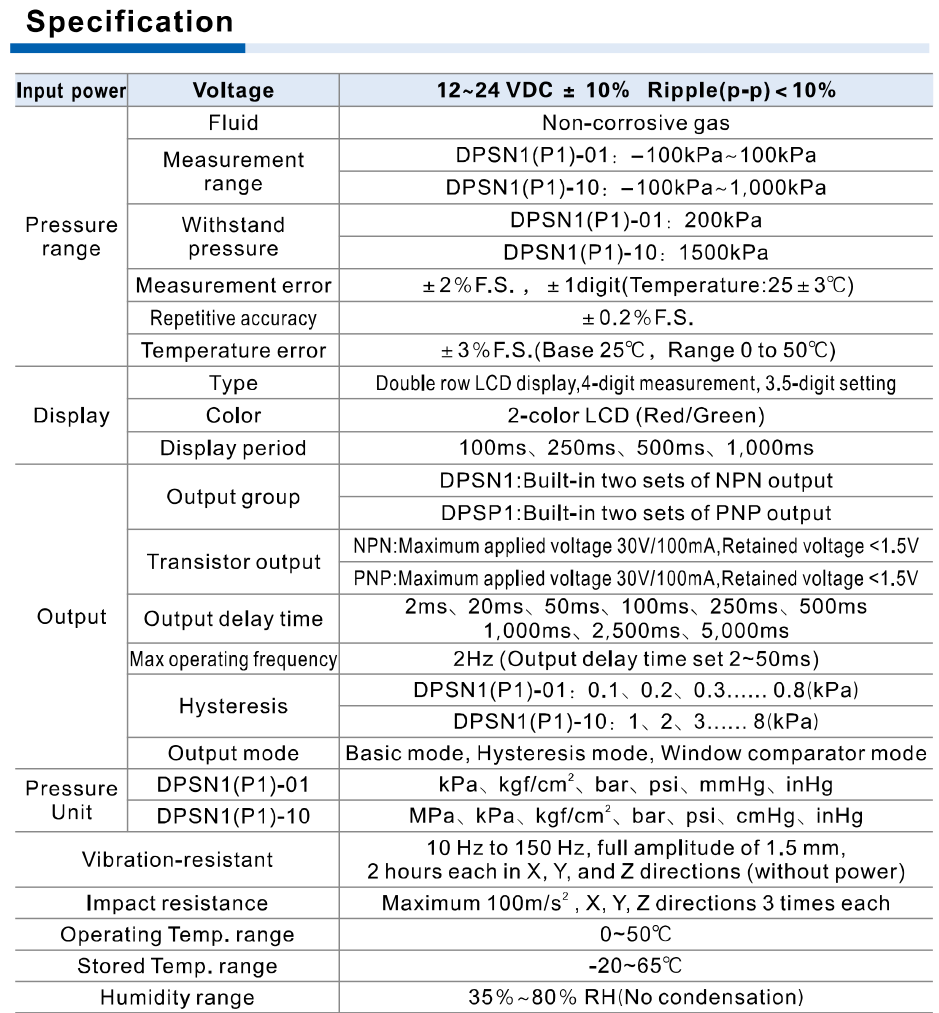

Reference details

Product type: Digital pressure sensor with two switching outputs
Published supply: 12–24 VDC ±10%
Published ranges: 01: −100 to 100 kPa; 10: −100 to 1,000 kPa
Published outputs: NPN or PNP, two outputs
Reference pages: PDF pages 1–4

Matching Questions

Is DPS interchangeable with DPH when range and connector match?

Not automatically. DPS publishes two switching outputs, while DPH includes a specified analogue output. Confirm the complete output requirement and...

DPS

Include this series in a project RFQ

DPS Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quote Send a parts list or BOM
